Fulcrum-L: laboratory-grade HPGe spectroscopy without liquid nitrogen

Weighing 8 lbs in a compact, mechanically cooled footprint, the Fulcrum-L brings HPGe spectroscopy to the bench with WinOMNI quantitative analysis (isotope ID, MDA, and uncertainty) and GMP-compliant reporting.

Fulcrum-L
Key Features
  • Superior Resolution: FWHM < 950 eV at 122 keV; < 1.9 keV at 1332 keV
  • Isotope ID, NDA/MDA, and full uncertainty quantification in WinOMNI
  • GMP and 21 CFR Part 11–compliant analysis, reporting, and audit trails
Application Areas
Radiochemistry
Monitor radioisotope separations as they happen, with real-time HPGe gamma-ray imaging and bench-scale quantification.
Learn more
Environmental Monitoring
Detect, identify, and quantify low-level activity in environmental and effluent samples using high-resolution HPGe spectroscopy and low-background counting, with documented uncertainty for regulatory reporting.
Learn more
Radiopharmaceutical
Radiopharmaceutical production QA and quantified radionuclidic purity performed with GMP and 21 CFR Part 11 compliant software
Learn more
Downloads
Fulcrum-L DatasheetPDF
Works With
WinOMNI Spectral View
WinOMNI
The Windows analysis platform for the Fulcrum line: isotope ID, quantification, uncertainty, and defensible reporting.
View product
placeholder
WinOMNI-GMP
21 CFR Part 11 compliance for WinOMNI: audit trails, access controls, electronic signatures, and tamper-evident records.
View product
Shield Cart
Shield Cart
A portable low-background counting station for the Fulcrum-L: 2-inch lead with a copper liner.
View product

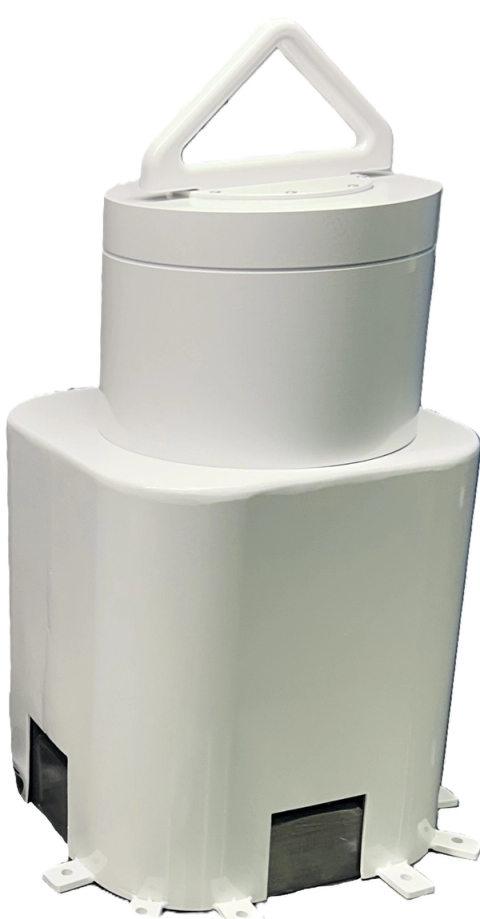

Benchtop Lead Shield
Benchtop Laboratory Shield
A fixed benchtop low-background counting shield for the Fulcrum-L: 2-inch lead with a copper liner.
View product
Full Specifications
Detector
Detector typeHPGe (High-Purity Germanium)
Relative efficiency12%@ 1333 keV (Co-60)
Crystal Dimensions60mm x 25mm
Energy ResolutionFWHM < 950 eV at 122 keV; < 1.5 keV at 662 keV; < 1.9 keV at 1332 keV
Physical
Weight8 lbs
Dimensions8.0" x 6.0" x 6.0"20 cm x 15 cm x 15 cm
OrientationVertical or horizontal
Cooling
Cooler typeLong-life Stirling Cycle
Cool-down time~2 hrroom temperature to operating temperature
Power
Primary powerAC line power
Other Power OptionsBridge battery for local UPS functionality
Power Supply100-240 VAC, 50-60 Hz
Software
Software platformWinOMNIWindows
Analysis modulesISOTAC NDA/MDA, uncertainty quantification, QA documentation
GMP-complianceWinOMNI GMP Software Module
Output formatsFlexible reporting and file outputs
ConnectivityWireless or Ethernet
